Product Description
CONSEW 339RBL-25
Double needle walking foot upholstery sewing machine with 25″ work space under the arm.
Compared to the standard 10″ of workspace on the standard Consew 339RB walking foot upholstery machine.
The increased space will allow for longer and larger material to be passed under the arm and sewn.
The large capacity “U” style bobbin holds more thread than the standard “G” style bobbin allowing you to sew longer
seams and more work before having to change the bobbin.
Applications :
For sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics
canvas and various coated and laminated products.
Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers
sails, tents, camping trailer covers, awnings, umbrellas , tops , bags , luggage , handbags
travel ware accessories , sports and camping equipment , wearing apparel , outdoor clothing
canvas shoes , slippers and orthopedic appliances, etc.
Suitable for double needle seaming, binding, taping and piping operations
Two needle mechanism readily makes two parallel lines of stitches
Features :
Compound feed, walking foot mechanism
Large hooks and bobbins assures longer operation
Centra-Lube® semi-automatic lubrication system
Automatic hook lubrication
Oil feed take-up
Simple adjustment permits raising and lowering of the center foot which allows for sewing
different thicknesses of materials
Safety clutch protects the hooks from being damaged
Various needle gauges available
Speed, Max (S.P.M.)*: 3000spm
Clearance Under Foot : 9/16" (14mm)
Needle Bar Stroke : 1 5/16" (33mm)
Stitch Length, Max: 2 1/2 s.p.i. (10 mm)
Needle : 135 x 17
Bobbin – Metal (All): 15041
Pre-wound: S or U
Hook : 15502
Work Space: 10" (258mm)
Available Needle Spacing :
1/8" (3.2mm) to 1-1/2" (38.1mm)
This machine comes standard in 1/4" gauge distance between needles

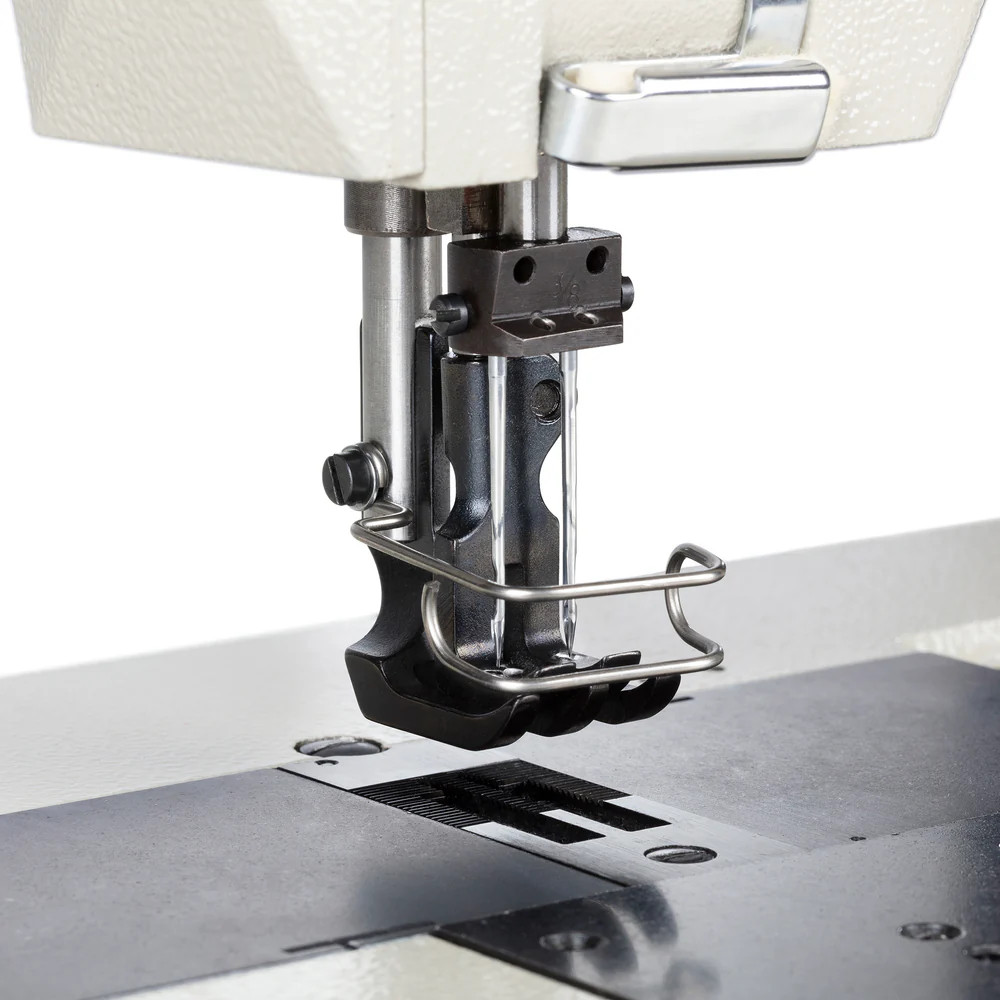

The seam centering guide foot shown on the picture it's available in :
1/4" / 5/16" / 3/8" / 1/2"

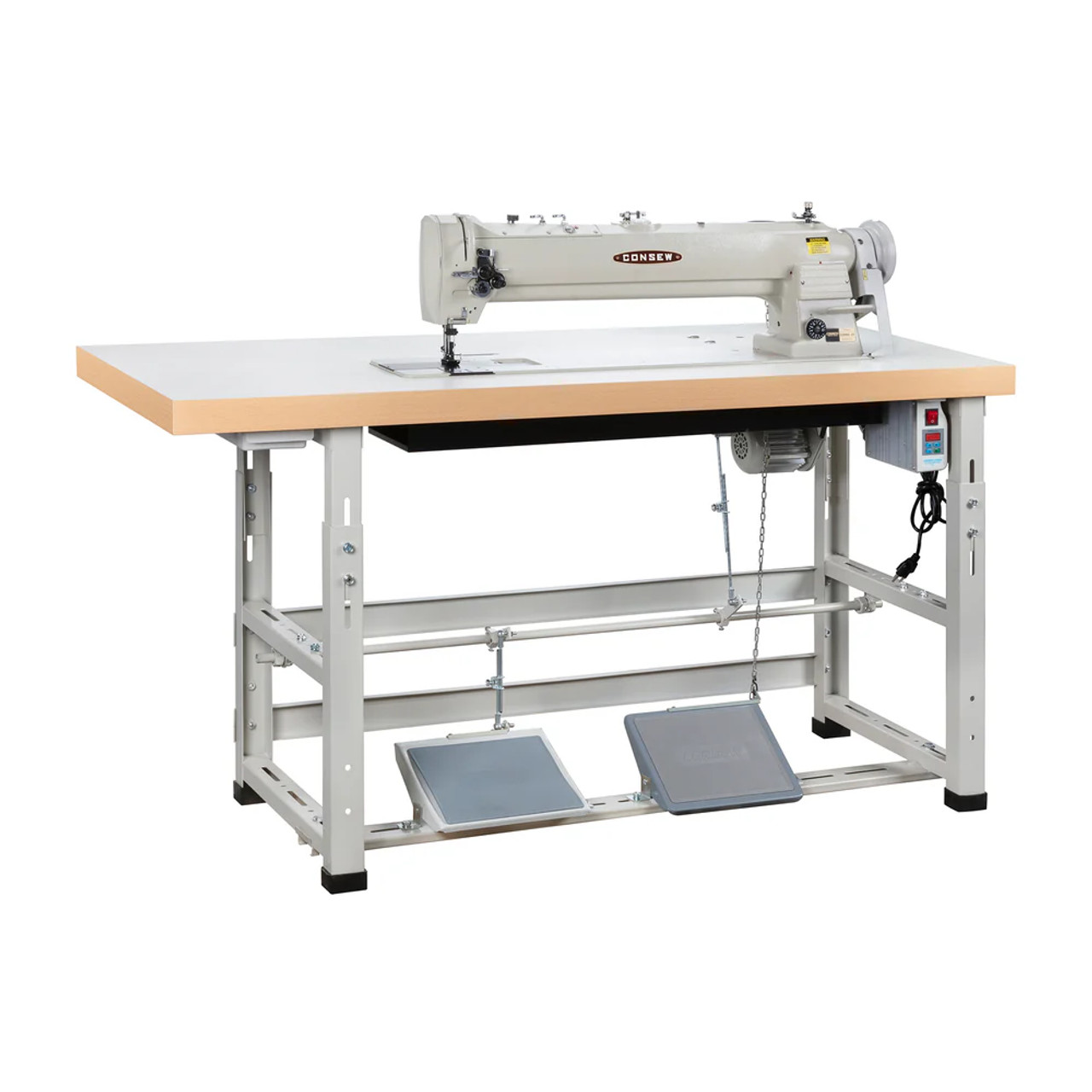

This is a complete unit with table stand and 3/4 HP servo motor & 1/4" Gauge
If you ever need any technical advice on this item or you have any questions
if this is the correct item for you please contact us by calling 323-560-1717
WE SERVICE WHAT WE SELL
