Product Description
Consew 744R30
Extra Heavy Duty, Single Needle (745R30 is 2-needle), Drop Feed, Needle Feed (compound Feed), Alternating Presser Feet Lockstitch Machine
With: Extra Large Bobbins And Vertical Axis Hooks, Centralized Arm Lubrication, Reservoir-oiled Hooks With Micrometric Control Valve
Presser Foot Locking Lever, Push Button Stitch Regulator, Reverse Feed, Safety Clutch, Built-in Bobbin Winder, Front Handwheel
Puller (Optional), One Piece Upper Casting
APPLICATIONS :
Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels
mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.
Suitable for stitching double seams and lap seaming.
FEATURES :
Compound feed, walking foot mechanism insures positive and even feeding of the material.
Safety clutch protects the hooks from being damaged in case of accidental strain
Reverse feed operated by foot pedal
Centralized arm lubrication
Reservoir-oiled hooks with micrometric control valve
Presser foot locking lever
Built-in bobbin winder
Push button stitch regulator
Extra heavy duty top shaft with four ball bearings for support
Extra large bobbins and vertical axis hooks for use of heavy thread; also allows for long operation between bobbin changes
High lift
Front handwheel (on 30" arm) allows for easy positioning of the needle(s)
745RP is available with optional factory-installed, bottom driven, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space
Specs :
Standard or Full Function Standard Functions
Needle 7x3 (DYx3)
Workspace Long Arm
Hook 70140
Feeding Mechanism Walking Foot
Work Space 30" (762mm)
Clearance Under Presser Foot 25/32" (20mm)
Stitch Type 301
Stitch Length 25/64" (10mm)
Bed Size 43 5/16" x 9 1/16" (1100mm x 230mm)
Number of Needles 1 (Single)
Bobbin 70141
Speed, Max (S.P.M.) 1500

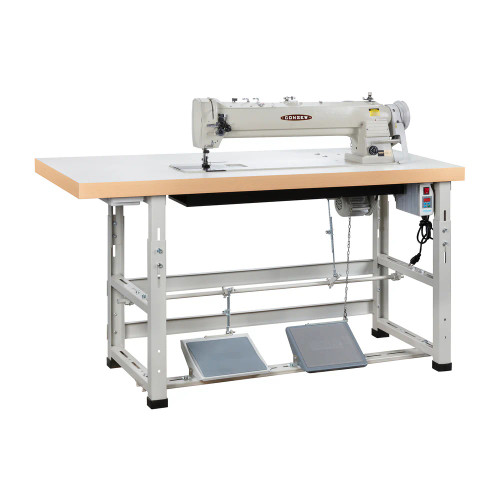

This is for a complete unit Machine-Heavy-Duty table stand & 3/4 HP servo motor 110V.
We Service What We Sell
